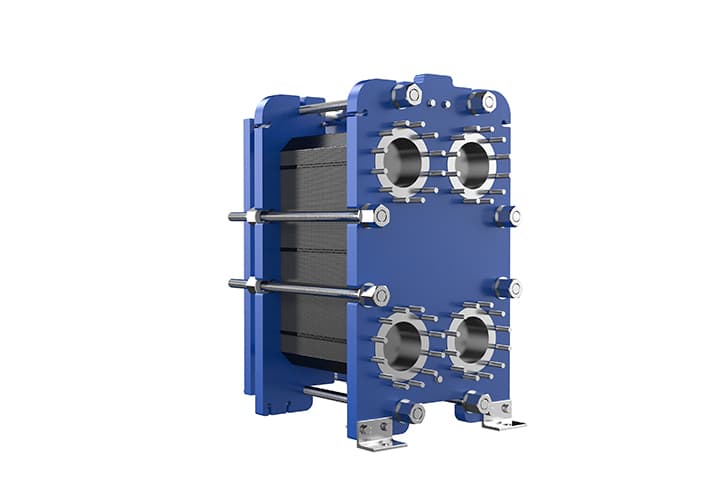

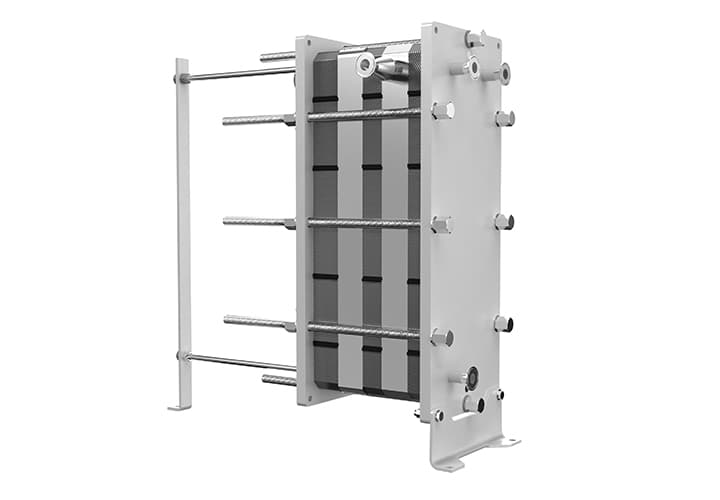

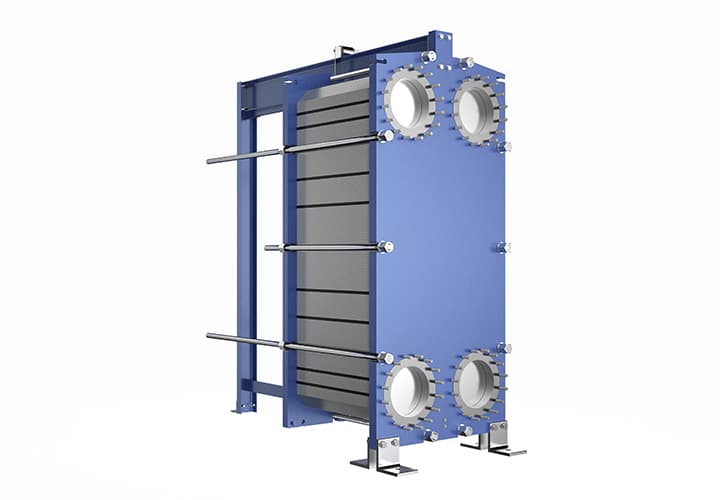

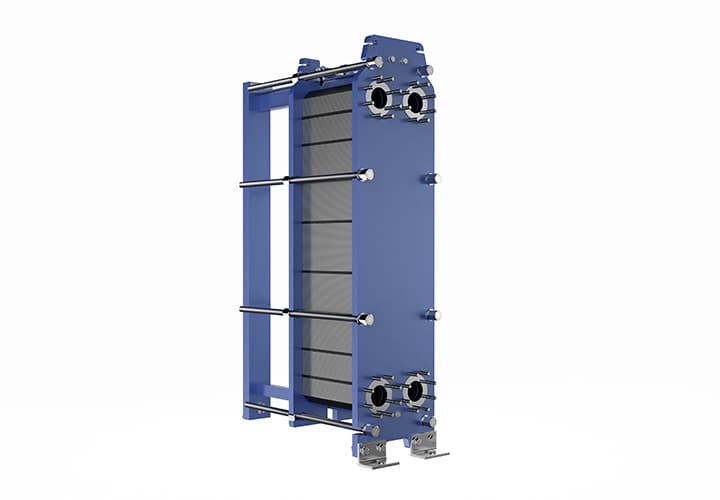

Gasketed plate heat exchanger
Configurable plate-pack PHE for primary–secondary thermal handover. Approach as low as 1 °C.
- Frame configuration
- Single-pass and multi-pass; configurable by duty point
- Plate material
- AISI 316L; Titanium, 254 SMO, Hastelloy on request
- Gasket material
- NBR-HT standard; EPDM-HT, FKM, EPDM-P
- Approach temperature
- as low as 1 °C with proper plate count
The gasketed PHE is the workhorse heat exchanger for CDU primary-to-secondary handover. Plate count and gasket configuration are sized to the duty point. Plate material is selected against the fluid pair (PG-25 on the secondary, treated facility water on the primary). The result is a heat exchanger that can be re-bored later by adding plates, swapped open for inspection, and re-gasketed in the field. Yuanzhuo has cleared the Google supplier-review process — that is the credential most reviewers look for first.
Other products engineers pair with this
Brazed plate heat exchanger
Compact copper-brazed PHE for in-row CDU, sidecar, and rack-density handover. Up to 600 kW per unit.
All-stainless welded plate heat exchanger
Gasket-free, all-stainless welded PHE for ultra-clean closed-loop service.

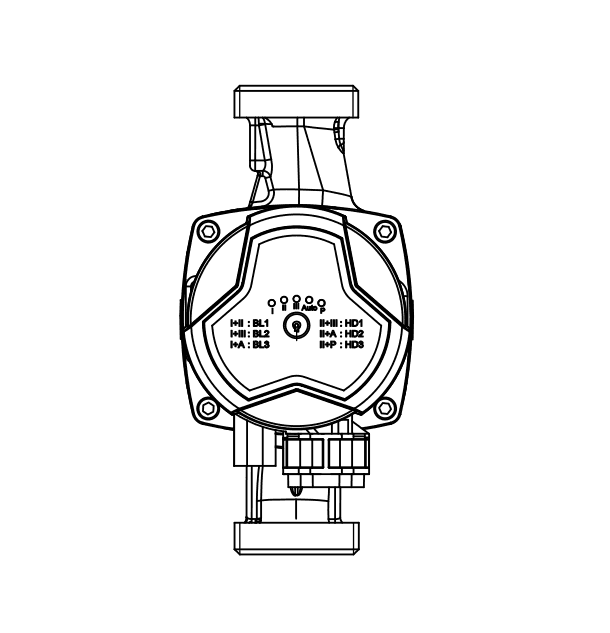

Canned-motor circulator pump
Hermetically sealed canned-motor circulator. Zero shaft seal, zero fugitive emissions, primary or secondary loop.
Talk to us about the Yuanzhuo Gasketed plate heat exchanger
Direct line to sales and engineering. We respond with sized options, lead time, and applicable substitutions within one business day.
