Sanitary butterfly valve
Pharma-grade isolation valve, applied to closed-loop CDU water-glycol service.
- Variants

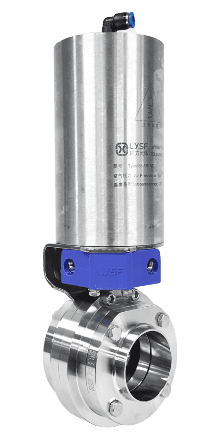

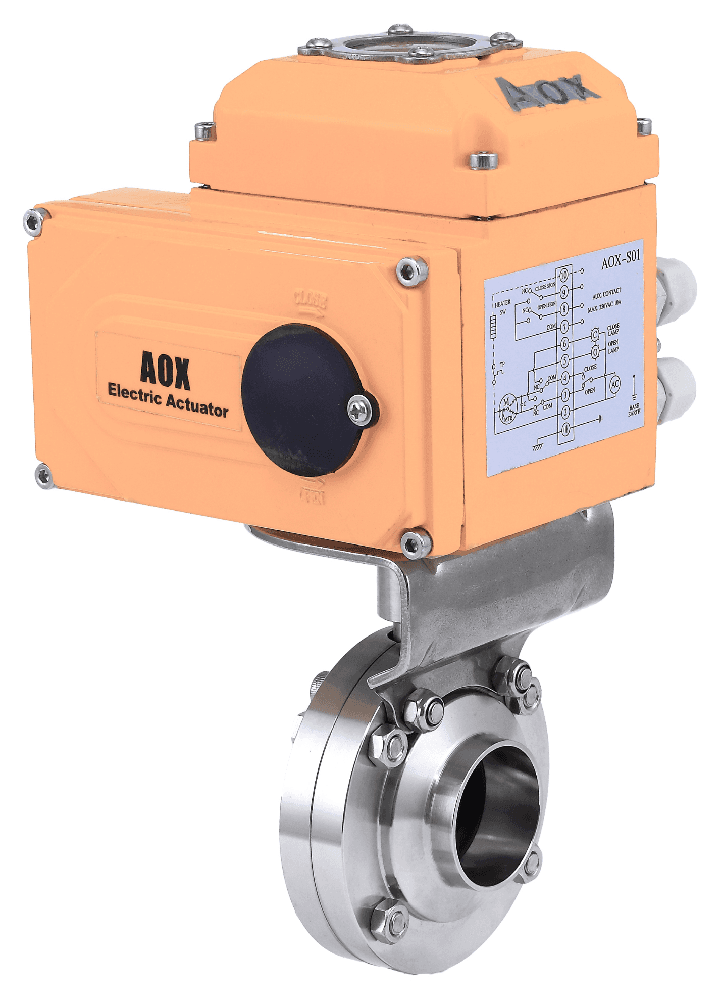

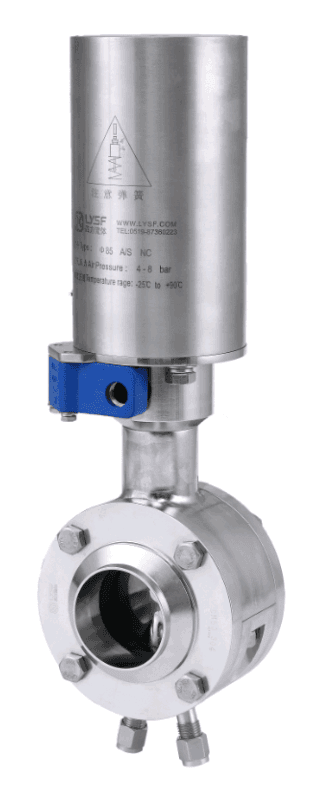

- Manual, pneumatic, electric, mix-proof
- Size range
- DN10 – DN150 (3/8" – 6")
- Body
- Stainless 316L, electro-polished
- Seat
- EPDM standard; FKM, VMQ on request
Liyang Sifang Stainless Steel Products has been a joint venture with Alfa Laval since 2009. The product family was built for pharma, biotech, semiconductor, and food-grade fluid systems where contamination is a project-killer. That pedigree is the level of cleanliness a closed-loop CDU wants. Cold-plate microchannels and PHE plate gaps at 0.08–0.31 inches are unforgiving of debris; a valve introducing crevices, dead legs, or particulate is a problem. A sanitary butterfly valve eliminates those failure modes.
